INBOARD ELECTRIC PROPULSION

The future of boating is here.

Evoy’s 100% electric plug-and-play inboard propulsion system is best suited for fast boats 20-50 foot. It is a robust system with power up to 800 hp, 50+ nm range and 50+ knots speed!

CLEAN

QUIET

POWER

ELECTRIC
INBOARD SYSTEM

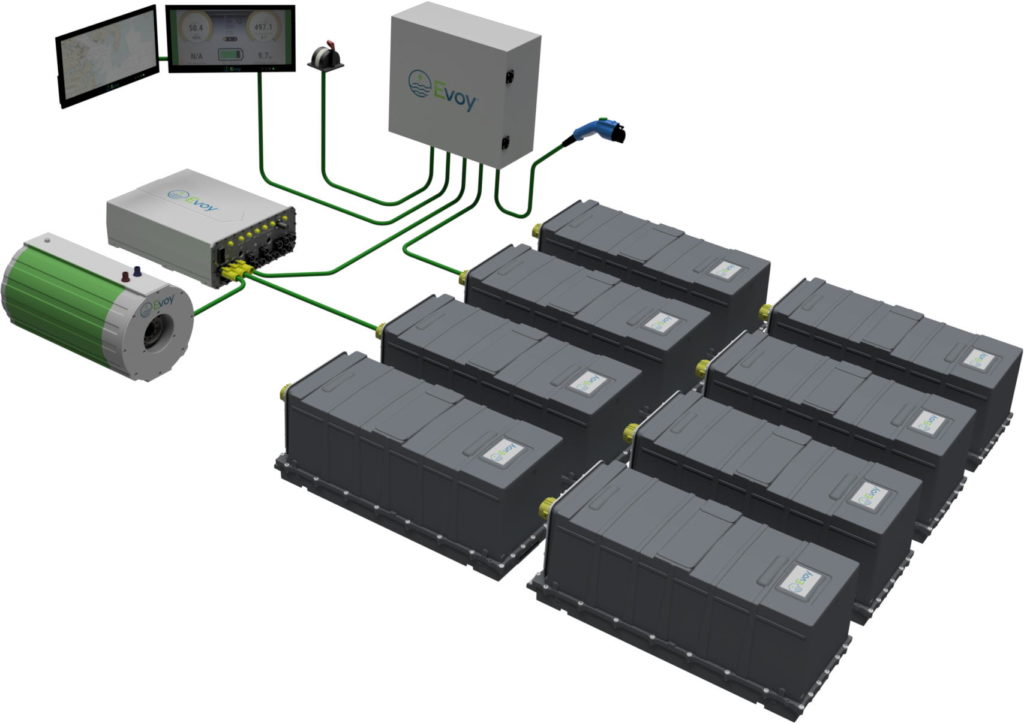

Evoy’s turnkey inboard electric system is a robust system designed for +1000 hours per year. Due to the over-the-air updates and programmable system, we can monitor, troubleshoot and update the software onboard. The system is virtually maintenance free and very affordable to use. The system can be connected to z – drive, water jet or shaft. It is a high-output motor best suited for boats 25-35 foot for single installments and 30-50 foot for double installments. The system will be available as 150 HP, 300 HP and 450 HP. The last mentioned is available today.

POWERTRAIN

Designed for the toughest conditions

The 100% electric Evoy turnkey plug-and-play high-output propulsion system has been designed and tested for use in the world’s toughest environment – the coast of Norway. With up to 800 horsepower you will never be short on power.

Motor500px

Up to 800 hp

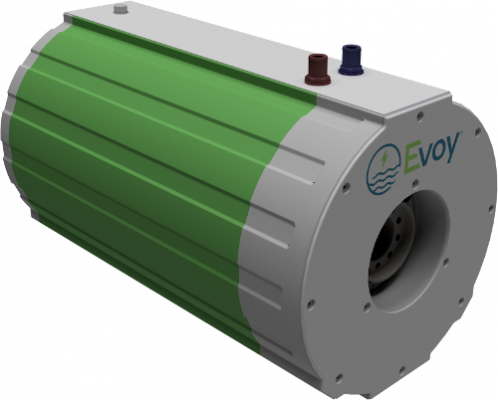

The 400 hp motor in Evoy’s electric propulsion system is programmable, liquid-cooled, and holds the highest rating of IP69K and is CE compliant. These motors are designed from the ground up to be fully sealed and suitable for very tough conditions. Weighing in at only 150 kilos the unique weight-power ratio of the motor is earlier unheard of in the maritime industry.

14.000 charging cycles

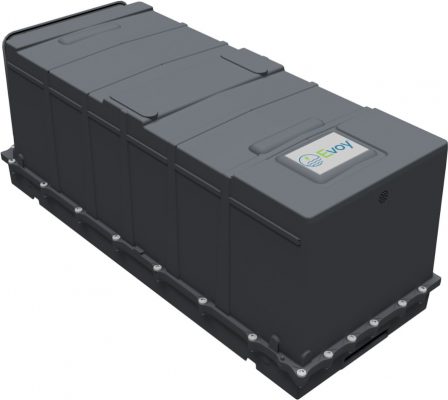

The batteries have been tested and approved according to DNVGL strict safety regulations. The batteries have IP67 waterproofing and Liquid Cooling. Designed for 14.000 charging cycles with 80% DOD. Choose between 60, 120 or 180kWh battery packs.

EVOY_battery_new_angle
Q_panel copy_resize

Smart boating

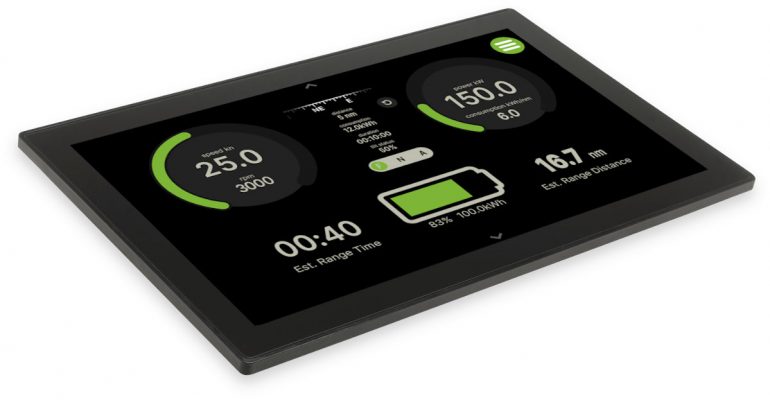

Evoy’s High Contrast TFT Touchscreens makes your e-boating experience a treat. With the option of 10” or 16”, single or dual screens you are able to move physical buttons to the screen.

Included

  • Weather updates
  • FM / DAB radio
  • Full Marine Navigation
  • Bluetooth
  • WiFi & 4G
  • Over-the-Air updates
  • Real-time motor/battery status
  • Charging Management
  • Monitor cost and CO2 savings
  • Triplog
  • WiFi & 4G
  • Over-the-Air updates

Extras

  • Echo-sounder w/data dashboard visualization
  • Automatic Identification System (AIS) for traffis monitoring

CLOSE TO NATURE

An eco-friendly experience

Evoy has created an eco-friendly electric propulsion system which means no emissions, no fumes and almost no motor sound. Virtually maintenance free and very affordable to use.

The freedom of electric boating

Recreational boating for many Norwegians has a significant value for their quality of life. Boating is associated with values such as freedom, nature experiences, recreation, and public health. Choosing electric boating will amplify the feeling of freedom as the quiet motor and no fumes will bring you even closer to nature.

A vision to reduce boating emissions

Boats emit 10-15 times as much CO2 as cars travelling the same distance, and globally smaller boats stand for +50m tons CO2 every year. This is only for smaller boats. Knowing this gives Evoy an enormous motivation to really make a difference by delivering Evoy’s eco-friendly, no emissions electric motor systems for boats globally. We want you to have peace of mind and give you the opportunity to be part of making our oceans clean again.

TECHNICAL SPECIFICATION

Motor500px

150 HP

120/200hp engine

170/350 Nm torque

90/150kW power

5000/6000 rpm

Approx. 55 kg

Pre-order available 2021

Motor500px

230 HP

230/450hp engine

400/800 Nm torque

170/333kW power

4000/6000 rpm

Approx. 100 kg

Pre-order available 2021-Q2

Motor500px

400 HP

400/800hp engine

770/1500 Nm torque

300/600kW power

3750/6000 rpm

Approx. 150 kg

Available now

FAQ

How reliable is electric propulsion ?

Electric propulsions systems are highly reliable. The reason for this is the simplicity of an electric motor linked to our marine electric management system. Simply put, our system has four moving parts, whilst on average a combustion engine has over 2000 parts.

How long does it take to charge ?

Our standard AC Charging system can charge with about 100 kW system can charge a standard Evoy system (a 100kWh battery) in about hour if there is an AC outlet big enough to support the onboard charger. Whilst our DC supercharging 300kW system can be charged in less than 30 minutes.

is there any incentives available for electric boats ?

For businesses in Norway, there is an incentive program for through Enova which supports commercial crafts with more than 100.000 kW use /25 tonn CO2 emissions with up to 50 % of additional cost. In addition to support for the system itself there is also up to 40 % support for infrastructure and project costs. Evoy can help with Enova application and submission.

Check with your local government in your country if they have any incentive packages.

How far can I go?

This is fully dependent on the boat and the size of the system that you put in it. However, with today’s battery technology you can expect between 25 to 50 nautical miles at a planing hull speed. At a slower speed, below hull speed (approximately 5 knots for a 25-footer), this range can be quadrupled.

How far can I go?

This is fully dependent on the boat and the size of the system that you put in it. However, with today’s battery technology you can expect between 25 to 50 nautical miles at a planing hull speed. At a slower speed, below hull speed (approximately 5 knots for a 25-footer), this range can be quadrupled.

What are the benefits of electric propulsion ?

Silence, zero emissions and low operating costs are the core benefits.
