INBOARD ELECTRIC MOTOR SYSTEM

The future of boating is here.

Evoy’s electric inboard motor system is best suited for fast boats from 20 to 50ft. This robust system offers up to 800Hp, +50nm range and +50 knots speed! All that with close to zero CO2 emissions and less noise.

ASSEMBLY_2560x1440_CROP

CLEANER

CONNECTED

POWERFUL

ELECTRIC
INBOARD SYSTEM

Evoy’s turnkey inboard electric system is a robust system designed for +1000 hours per year. Due to the over-the-air updates and programmable system, we can monitor, troubleshoot and update the software onboard. The system is virtually maintenance free and very affordable to use. The system can be connected to z – drive, water jet or shaft. It is a high-output motor best suited for boats 25-35 ft for single installments and 30-50 ft for double installments. The system will be available as 150 HP, 230 HP and 400 HP. The last mentioned is available today.

POWERTRAIN

Designed for the toughest conditions

The 100% electric Evoy high-output motor system has been designed and tested for use in the world’s toughest environment – the coast of Norway. With up to 800 horsepower you will never be short on power.

evoy electric inboard motor

Up to 800 hp

The 400 hp motor in Evoy’s electric propulsion system is programmable, liquid-cooled, and holds the highest rating of IP69K and is CE compliant. These motors are designed from the ground up to be fully sealed and suitable for very tough conditions. Weighing in at only 150 kilos the unique weight-power ratio of the motor is earlier unheard of in the maritime industry.

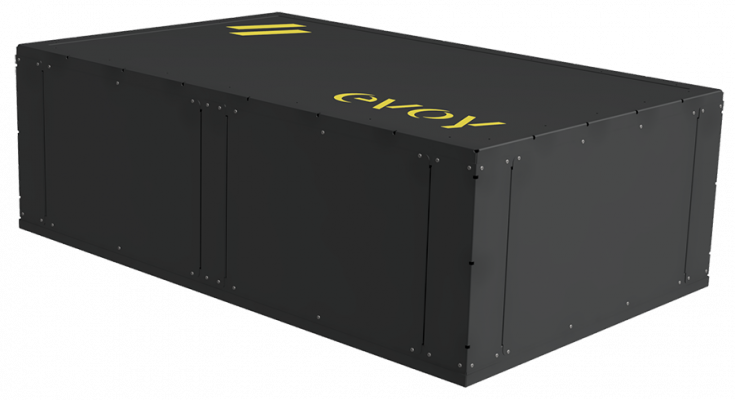

14.000 charging cycles

The batteries have been tested and approved according to DNVGL strict safety regulations. The batteries have IP67 waterproofing and Liquid Cooling. Designed for 14.000 charging cycles with 80% DOD. Choose between 60, 120 or 180kWh battery packs.

BATTERY_2560x1440-evoy
Q_panel copy_resize

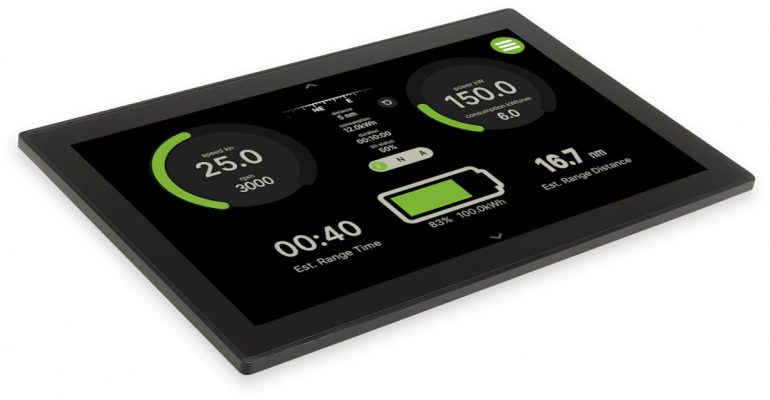

Smart boating

Evoy’s High Contrast TFT Touchscreens makes your e-boating experience a treat. With the option of 10” or 16”, single or dual screens you are able to move physical buttons to the screen.

Included

Extras

CLOSE TO NATURE

An eco-friendly experience

Significant less sound disturbance than fossile technologies. With the connected Evoy system, an open OTA, and the benefit from automatic software and firmware updates means almost no visits to the maintenance shop.

The freedom of electric boating

Recreational boating for many Norwegians has a significant value for their quality of life. Worldwide, leisure or commercial  boating is associated with values such as freedom, nature experiences, exploration, and public health. Electric boating will amplify the feeling of freedom as the quiet motor and no fumes will bring you even closer to nature.

A vision to reduce boating emissions

Boats emit 10-15 times as much CO2 as cars traveling the same distance, and globally smaller boats only stand for +50m tons CO2 every year. Knowing this gives Evoy a great motivation to accelerate the transition to electric boats to ensure a significant contribution to reducing global emissions. We want you to have peace of mind using our long-lasting and sustainable electric motor systems which gives you the opportunity to be part of making our oceans clean again.

TECHNICAL SPECIFICATION

evoy electric inboard motor

120 HP

CONTINOUS

PEAK POWER

PEAK

120 HP

200 HP

90 kW

150 kW

170 Nm

350 Nm

5000 rpm

6000 rpm

5000 rpm

6000 rpm

Approx. 55 kg

Available 2023

evoy electric inboard motor

230 HP

CONTINOUS

PEAK POWER

PEAK

230 HP

450 HP

170 kW

333 KW

400 Nm

800 Nm

4000 rpm

6000 rpm

4000 rpm

6000 rpm

Approx. 100 kg

Available 2022

evoy electric inboard motor

400 HP

CONTINOUS

PEAK POWER

PEAK

400 HP

800 HP

300 kW

600 kW

770 Nm

1500 Nm

3750 rpm

6000 rpm

3750 rpm

6000 rpm

Approx. 220 kg

Available now

FAQ

How reliable is electric propulsion ?

Electric propulsions systems are highly reliable. The reason for this is the simplicity of an electric motor linked to our marine electric management system. Simply put, our system has four moving parts, whilst on average a combustion engine has over 2000 parts.

How long does it take to charge ?

Our standard AC Charging system can charge with about 100 kW system can charge a standard Evoy system (a 100kWh battery) in about hour if there is an AC outlet big enough to support the onboard charger. Whilst our DC supercharging 300kW system can be charged in less than 30 minutes.

is there any incentives available for electric boats ?

For businesses in Norway, there is an incentive program for through Enova which supports commercial crafts with more than 100.000 kW use /25 tonn CO2 emissions with up to 50 % of additional cost. In addition to support for the system itself there is also up to 40 % support for infrastructure and project costs. Evoy can help with Enova application and submission.

Check with your local government in your country if they have any incentive packages.

What are the benefits of electric propulsion ?

Silence, zero emissions and low operating costs are the core benefits.

How far can I go?

This is fully dependent on the boat and the size of the system that you put in it. However, with today’s battery technology you can expect between 25 to 50 nautical miles at a planing hull speed. At a slower speed, below hull speed (approximately 5 knots for a 25-footer), this range can be quadrupled.
